> Kit 2.4 TODA Honda S2000
Kit 2.4 TODA Honda S2000 Agrandir l'image

Kit 2.4 TODA Honda S2000

13001-F20-400-I

Nouveau produit

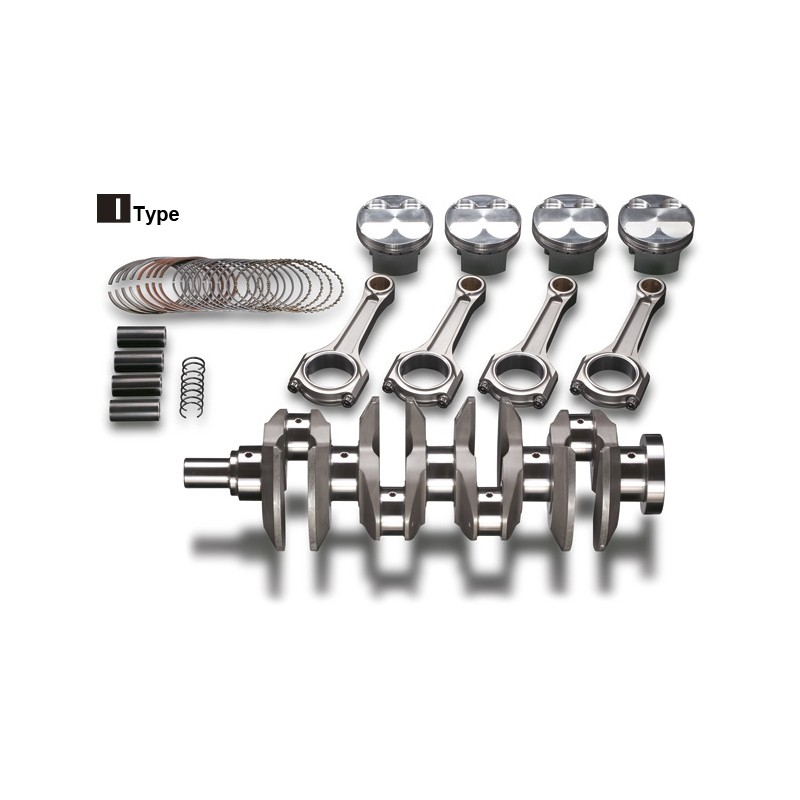

  • Stroker kit pistons, bielles, vilebrequin, disponible en 86 et 86.5mm, permettant d'atteindre 2.400cc
  • Indiquez le diamètre nécessaire en commentaire de commande, importé du Japon à la commande

Plus de détails

Sur commande

11 684,40 € TTC

Fiche technique

Famille Moteur

En savoir plus

F20C/F22C (S2000) Increased Capacity 2400KIT NA I Type High Comp

Engine Type

 F20C/F22C 2400KIT-I (2378) F20C/F22C 2400KIT-I (2405)
Part No. 13001-F20-400-I 13001-F20-401-I
Price (set)
Bore×Stroke ø87.00×100mm ø87.50×100mm
Displacement 2378cc 2405cc
Crown Volume *1 -0.56cc/5.38cc -0.56cc/5.45cc
Projection Height +1.0mm (from the deck of the block) +1.0mm (from the deck of the block)
Reference C/R *2 Standard head GK t=0.6mmξ≈12.12:1 Standard head GK t=0.6mmξ≈12.27:1
Based on standard piston pin diameter.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:The compression ratio given above are only to be taken as a guide, measurements are required.
Cylinder head combustion chamber may need a boring modification to gain sufficient clearance.
Cylinder skirt of the block may need a modification to gain sufficient clearance.
