> Pistons TODA basse compression 3SGTE Toyota
Pistons TODA Hautes compression Agrandir l'image

Pistons TODA basse compression 3SGTE Toyota

13020-3SG-T00

Nouveau produit

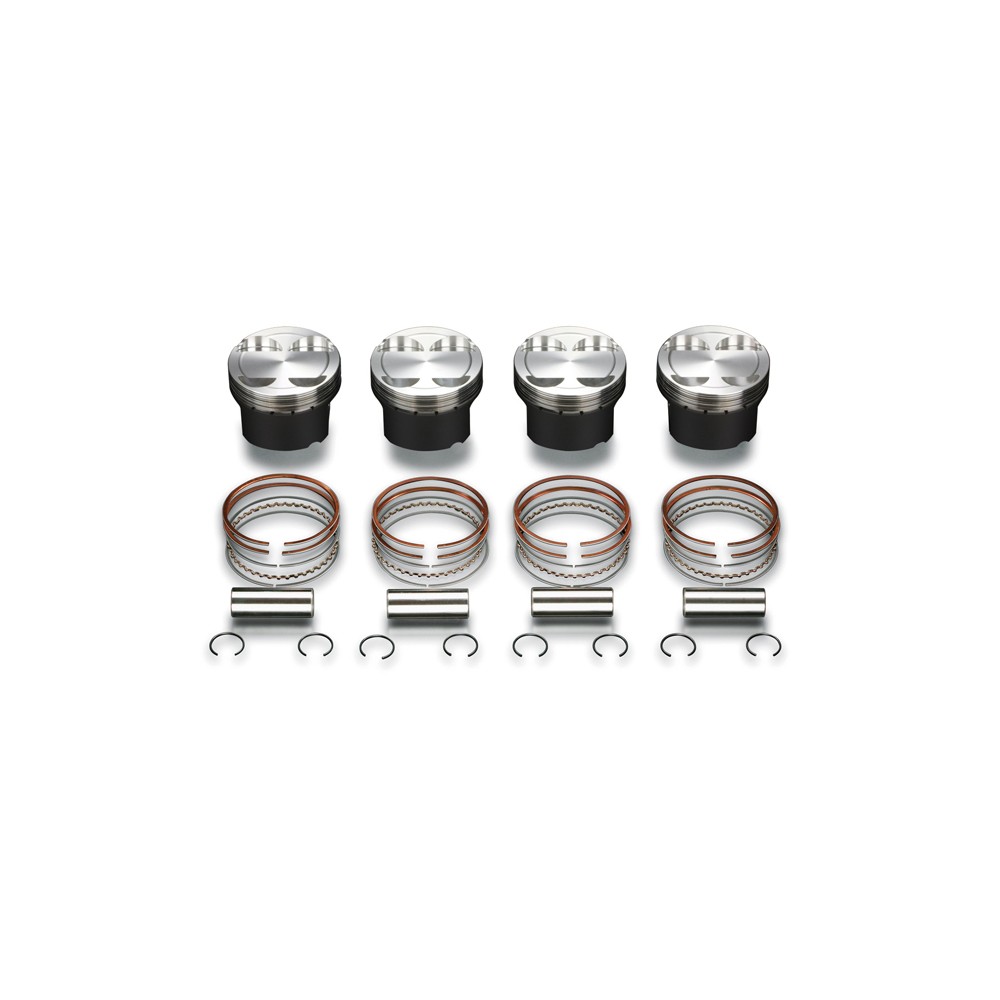

Jeu complet avec segments et axes, forgés, détails techniques ci dessous

 87 mm

Plus de détails

Sous 10 jours

1 439,69 € TTC

Fiche technique

Famille Moteur

En savoir plus

3SG () Low Comp Forged Piston KIT for TURBO

Engine Type

 3SG () for TURBO
Part No. 13020-3SG-T00
Price (set) ¥,000
Bore ø87.00mm
Displacement 2045cc
Crown Volume *1 -7.5cc/-10.5cc
Projection Height *2 -0.5mm
Reference C/R *3 Standard head GK t=1.5mmξ≈8.3:1 (ver.I, II) / t=1.2mmξ≈8.7:1 (ver.III, IV)
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
