9-7 Ford Mustang RS 2.3T GTX2971R 500HP turbo

P/N
002- 0161

Item Name

MAMBA 15~ Ford Mustang RS 2.3T GTX2971R Ball Bearing Turbocharger

Product Situation
Brand New in Box.

Application

HP Support: 450~500 HP

2014~2019 Ford Mustang 2.3T Econoost Tier2

2016~2019 Ford Focus RS 2.3T

Wheel

Compressor Wheel: 54.1/71.0/58T (Performance 7+7 Blade Billet Wheel)

Turbine Wheel: 51.8/56.5/84T (9 Blade GTX29R)

Comp. Housing
A/R.68

Bolt-On Directly.

Turbine Housing

A/R.86

Bolt-On Directly.

Actuator
0.8bar spring is pre-installed on the adjustable actuator

Additional 1.2bar and 1.5bar spring go with box.

Kit Includes
1 x MAMBA GTX2971R Ball Bearing Turbo.

1 x 4AN 1/4” PTFE Oil Feed line with 1.0mm restrictor.

2 x 3/8” PTFE Water line

1 x 3/4” Oil return Line Kit

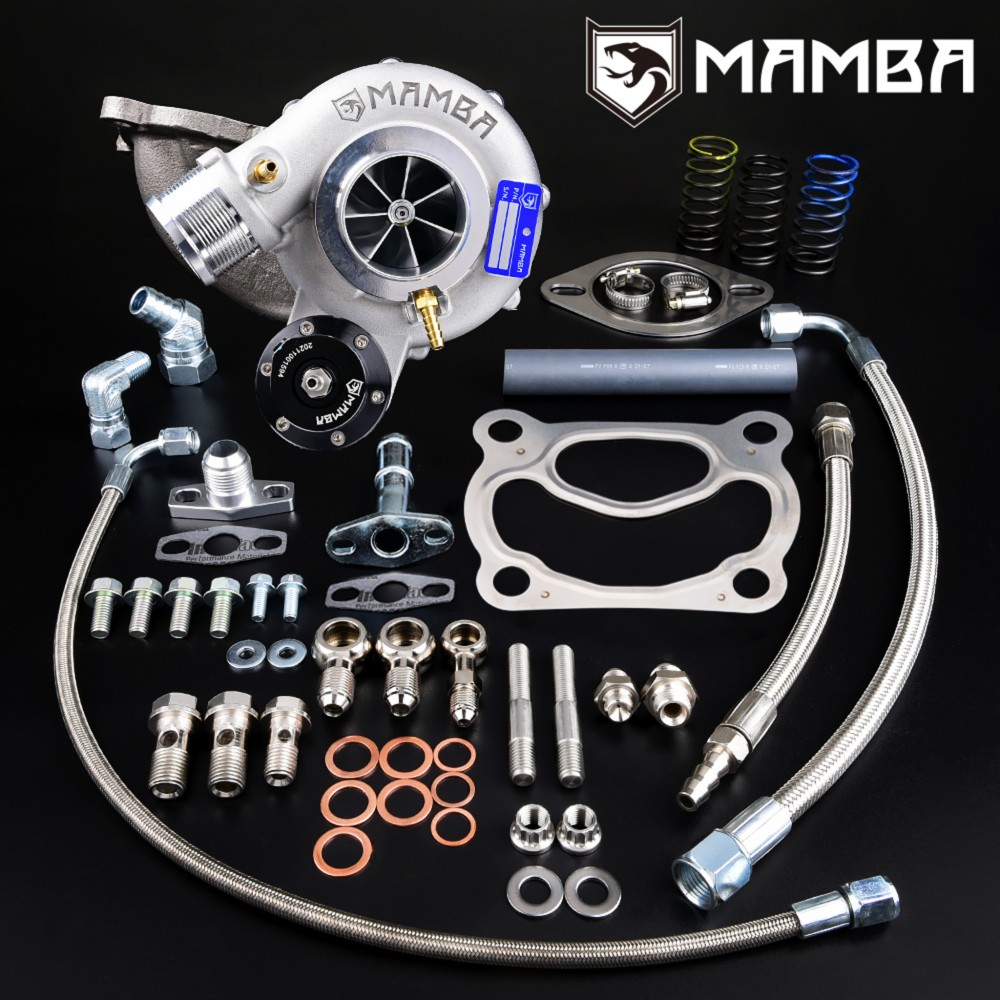

Everything shown on first picture is included.
