Turbo 3SGTE Celica ST185 ST205 mr2 CT26-GTX3071R

P/N
001-0467A
Item Name
MAMBA For TOYOTA 3S-GTE ST185 ST205 SW20 MR2 Celica GT4 Upgrade CT26-GTX3071R GTX Turbocharger
Product Situation
Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
For TOYOTA 3S-GTE ST185, ST205 & SW20 with CT20B or CT26 twin entry turbo.
This CT26 can replace CT20B turbo as well.
Bolt-On directly without modification
Inconel turbine wheel replace ceramic turbine wheel.
Max HP :400~450HP
Wheel Spec
Compressor Wheel : 54 mm/ 71mm (GTX3071R 6+6 Blade Billet Wheel w/ Extended Tip)
Turbine Wheel : 68mm / 52mm (CT26 9 Blade Turbine Wheel)
Turbine Housing
A/R .73
Actuator
0.8bar spring pre-installed on the adjustable actuator
1.2bar and 1.5bar spring will go with box
Stage 3 Aluminium Piston type of Adjustable actuator (Replace diaphragm type)
Bearing
Journal Bearing
Cooling
Oil and Water-cooled system
Kit Includes
1 x MAMBA CT26 GTX Turbocharger with GTX3071R Billet Wheel
1 x Turbo Oil Feed / Return Line Kit (with 12mm & 18mm adapter for oil supply)
1 x Turbo water feed / return line Kit
1 x Turbine inlet & outlet gasket
1 x Tee for actuator
6 x 10mm stud kit with copper coated nut

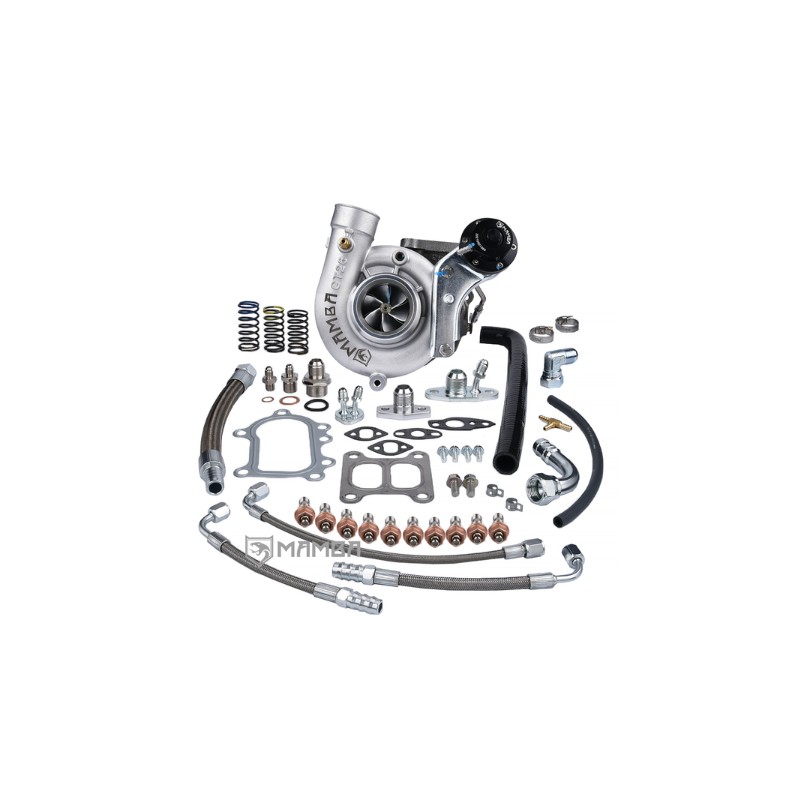

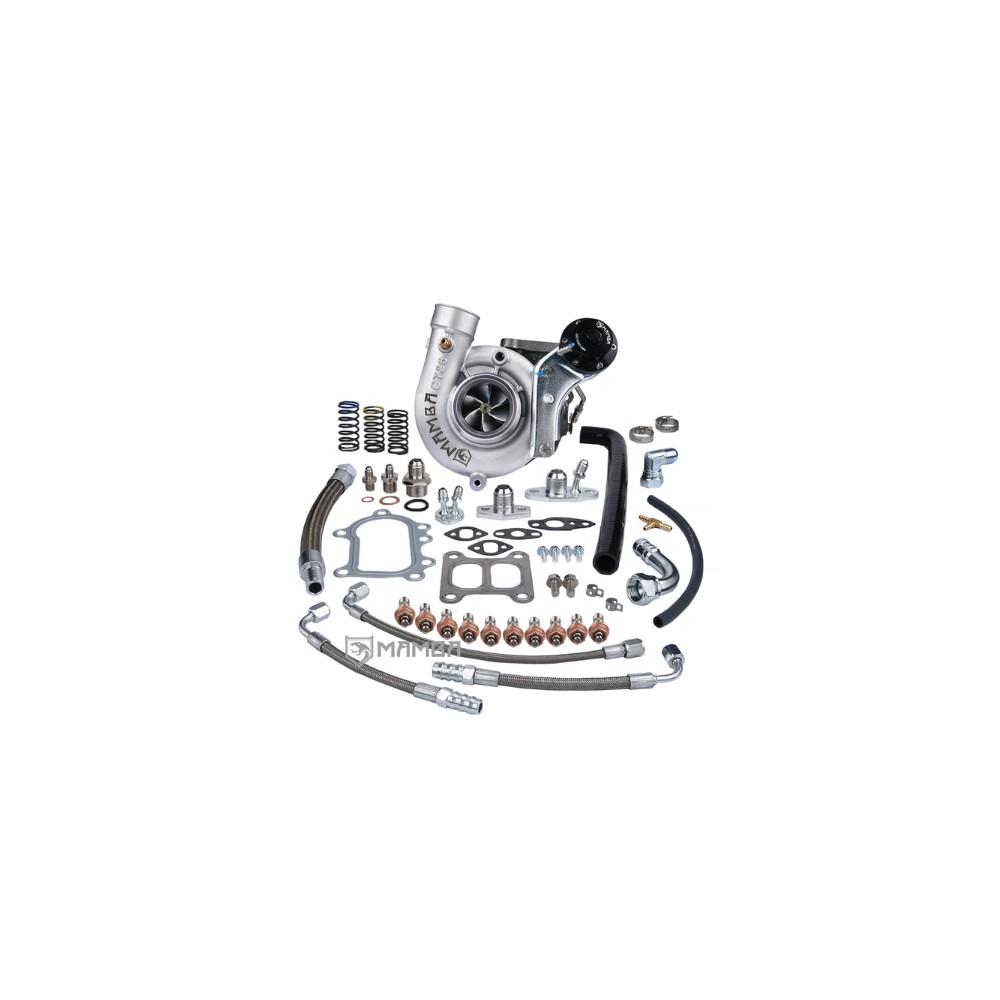

Everything shown on picture is included
