Turbo K04 300hp pour 1,6 THP Peugot Citroen

P/N
001-2307A
Item Name
MAMB 9-7 K04 PRO K04-4660 PEUGEOT CITROEN EP6 1.6T Turbocharger with Ni-Resist D5S Turbine housing 300HP)
Product Situation
Brand New
Intake system needs to be modified as cover inlet 50.3mm which is larger than factory 45mm.
Cover Outlet OD 48.8mm (208 THP K03-292/426 Type)
Application
2007-09 Peugeot 207 with EP6DT Engine
2006~ Peugeot 207 RC THP 175 1.6L with EP6DTS 175HP engine.
2005- Citroen DS 3 1.6L THP 150 with EP6DT Engine
2009- Citroen C 4 THP with EP6DT Engine
2009- Citroen DS 3 1.6L THP 150 with EP6DT Engine
2005- Peugeot 207 1.6L THP 150 with EP6DT Engine
2009- Peugeot 3008 1.6L THP 150 with EP6DT Engine
2009- Peugeot 3008 1.6L THP 155 with EP6DT Engine
2007-13 Peugeot 308 1.6L THP 150 with EP6DT Engine
2009- Peugeot 5008 1.6L THP 155 with EP6DT Engine
2010- Peugeot RCZ 1.6L THP 16v 156 with EP6DT Engine
Support 250~300HP
Replace and upgrade 53039880117, 53039700121, 5303970179 and 53039700217, 53039700292, 535370427.
Spec
Compressor wheel : 45.2/60 (7+7 Blade Billet Compressor Wheel)
Turbine Wheel: 41.7/45.6 (9 Blade / K04 PRO)
Turbine Housing A/R: 5cm^2
HP Support: 280HP~320HP
Bearing
Journal Bearing with Performance thrust bearing with 3 oil holes.
Cooling
Oil & water-cooled
Actuator
Vacuum Actuator

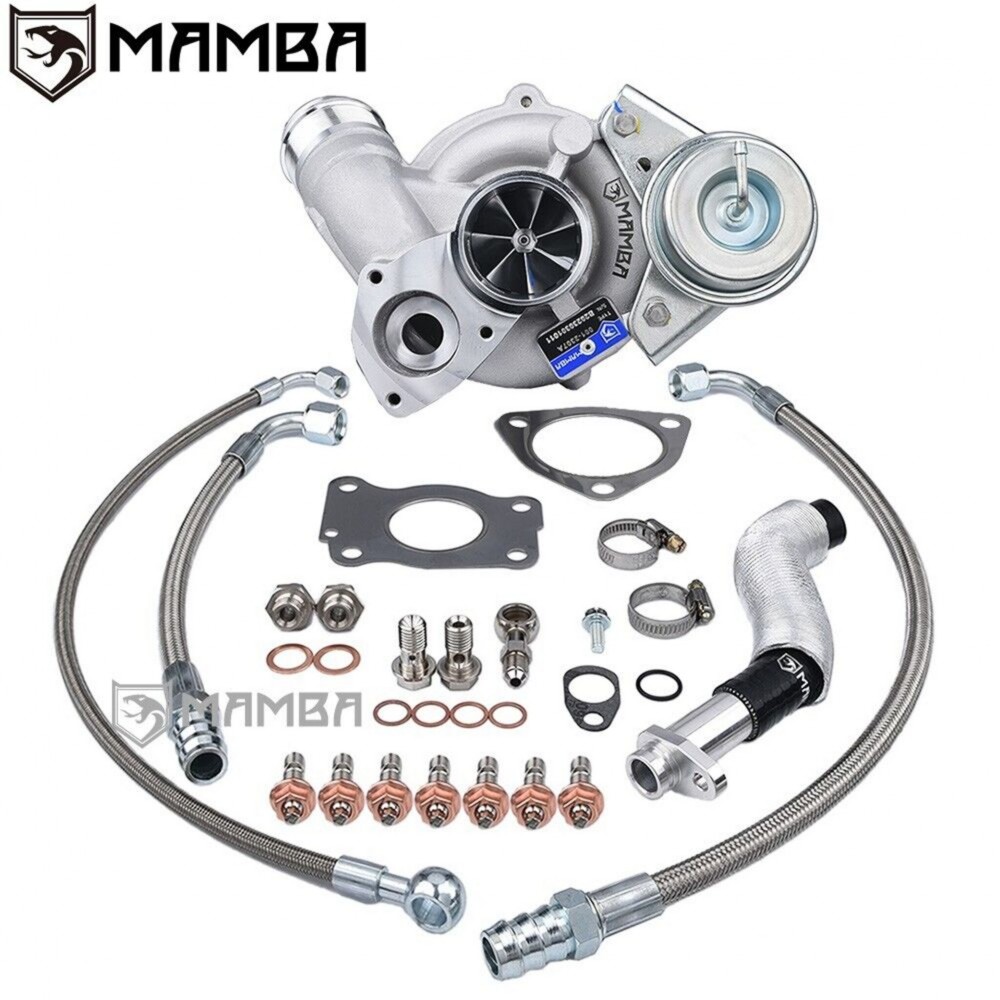

Kit Includes
1 x K04-4660 Turbocharger
1 x Oil Feed Line Kit
2 x Water Coolant line kit
1 x Oil Return Line kit
1 x SS301 Turbine Inlet Gasket
1 x SS301 Turbine Outlet Gasket
7 x 10mm Stud Kit
