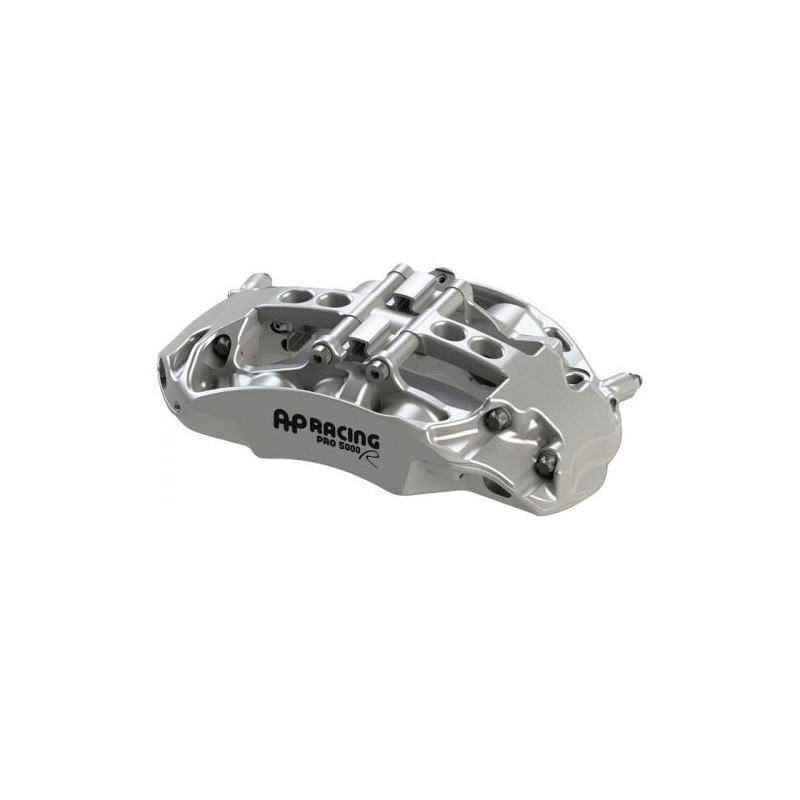

AP RACING FRONT BRAKE CALIPER - CP9665
CP9665
Nouveau produit
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 210.0mm x 42.0mm centres.
- Suits Ø390.0mm Max or 362.0mm Min x 36.0mm Max / 32.0mm Min thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 7lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Sur commande
Fiche technique
| Famille | Freinage |
En savoir plus
AP RACING CP9665 6 piston brake calipers - PRO 5000 R
Features of the Pro 5000 R range:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
Applications: Universal.
Mounting type: Radial.
Aluminium calipers.
Stainless steel pistons.
High temperature seals.
Compatible with CP6230D54 pads.
Assembly sides: Right or left.
Technical specifications:
Piston diameters: 27 mm (x 2) / 31.8 mm (x 2) / 38.1 mm (x 2).
Hydraulic thread: M10 X 100.
‘PL’ dimensions: 63.50 mm.
Mounting offset: 42 mm.
Mounting centres: 210 mm.
Disc thickness: 32 mm (min) / 36 mm (max).
Disc diameters: 362 mm (min) / 390 mm (max).
Advised discs: part number CP4284134/5CG8 or CP55721030/1CG8.
Pad area: 81.62 cm².
Pad thickness: 25 mm.
Weight (no pads): 3.1 kg.
Seal repair kit, part number CP8518-CEJ.
You are looking for an AP RACING specific or spare part (caliper pistons, pins, joint kits, etc)? Please contact our team of specialists via the contact form or at +33 (0)684223578.
Features of the Pro 5000 R range:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
Applications: Universal.
Mounting type: Radial.
Aluminium calipers.
Stainless steel pistons.
High temperature seals.
Compatible with CP6230D54 pads.
Assembly sides: Right or left.
Technical specifications:
Piston diameters: 27 mm (x 2) / 31.8 mm (x 2) / 38.1 mm (x 2).
Hydraulic thread: M10 X 100.
‘PL’ dimensions: 63.50 mm.
Mounting offset: 42 mm.
Mounting centres: 210 mm.
Disc thickness: 32 mm (min) / 36 mm (max).
Disc diameters: 362 mm (min) / 390 mm (max).
Advised discs: part number CP4284134/5CG8 or CP55721030/1CG8.
Pad area: 81.62 cm².
Pad thickness: 25 mm.
Weight (no pads): 3.1 kg.
Seal repair kit, part number CP8518-CEJ.
You are looking for an AP RACING specific or spare part (caliper pistons, pins, joint kits, etc)? Please contact our team of specialists via the contact form or at +33 (0)684223578.
Ref.: CP9665
