> Hypermax IV Toyota Yaris GR 2020+

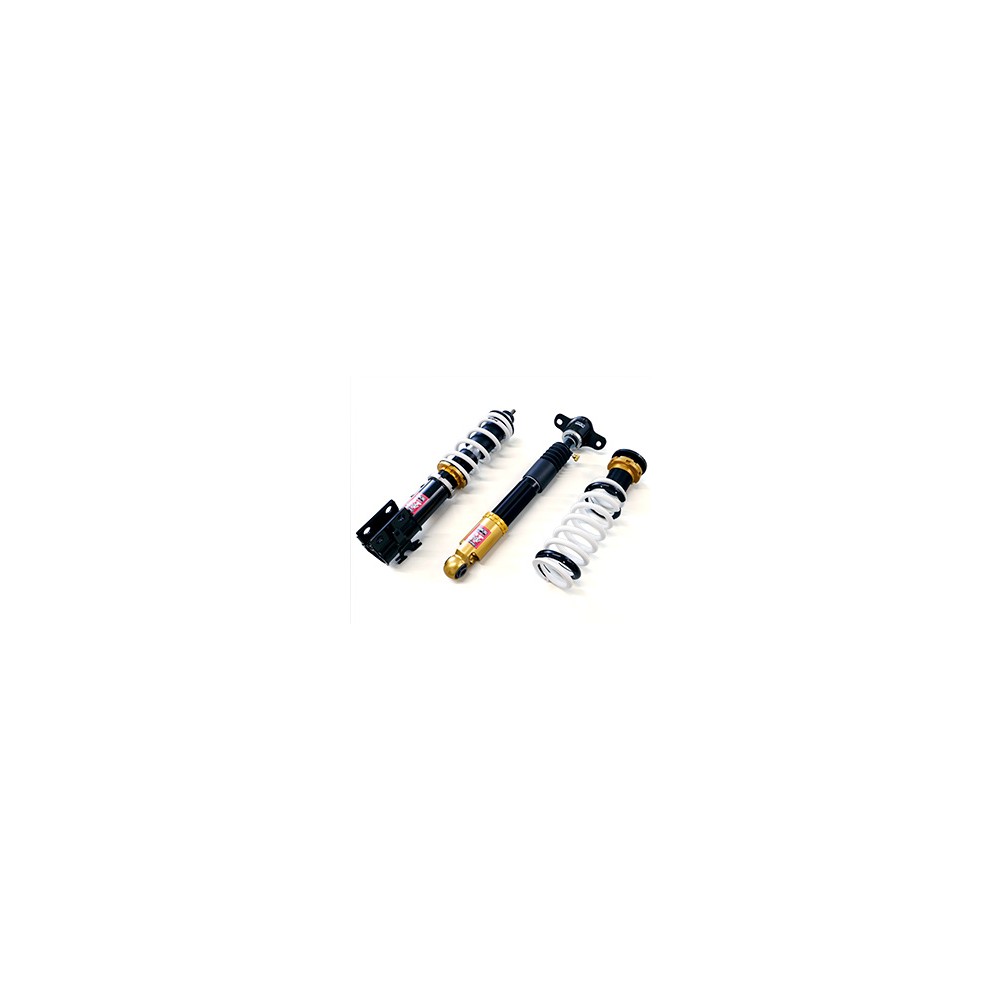

Hypermax IV Swift Sport ZC33S Agrandir l'image

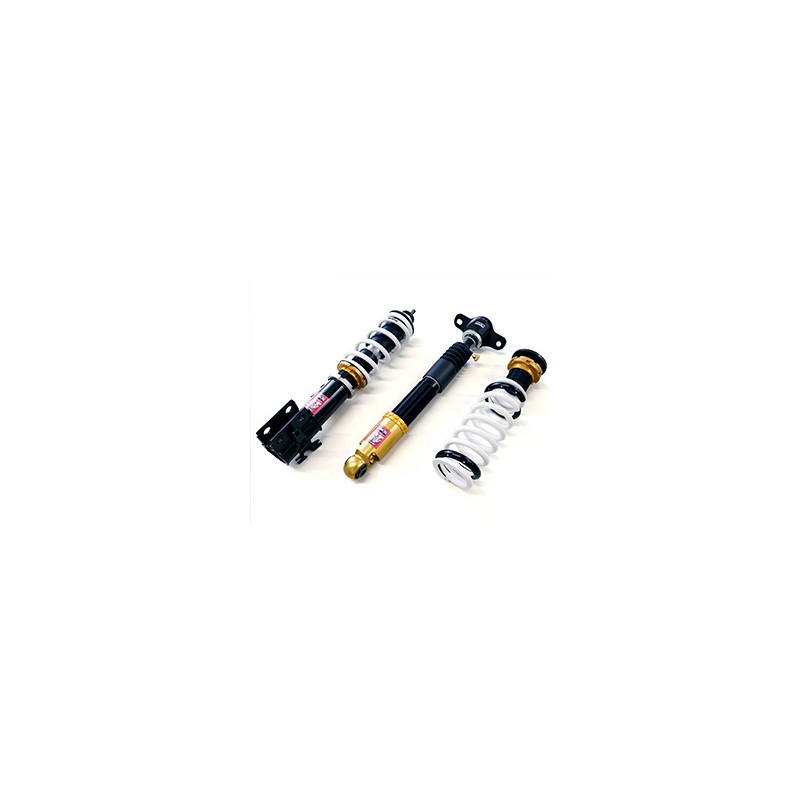

Hypermax IV Toyota Yaris GR 2020+

80230-AT025A

Nouveau produit

  • Kit suspension haut de gamme route et piste. Comfortable tout a maitrisant le roulis du véhicule
  • Totalement spécifique pour la Yaris GR

Plus de détails

3 242,50 € TTC

Fiche technique

Famille Suspension

En savoir plus

Application 　 Specification
Engine G16E-GTS
Model Year 20/09 -
Remarks
　
  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket 〇 〇
Upper mount Stock Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Possible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)		 - -



Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 654 ← 679 ～ 634 679 ～ 634
Against stock -25 ← 0 ～ -45 0 ～ -45
REAR Ride height *1 651 ← 677 ～　630 677 ～　630
Against stock -26 ← 0 ～ -47 0 ～ -47
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
